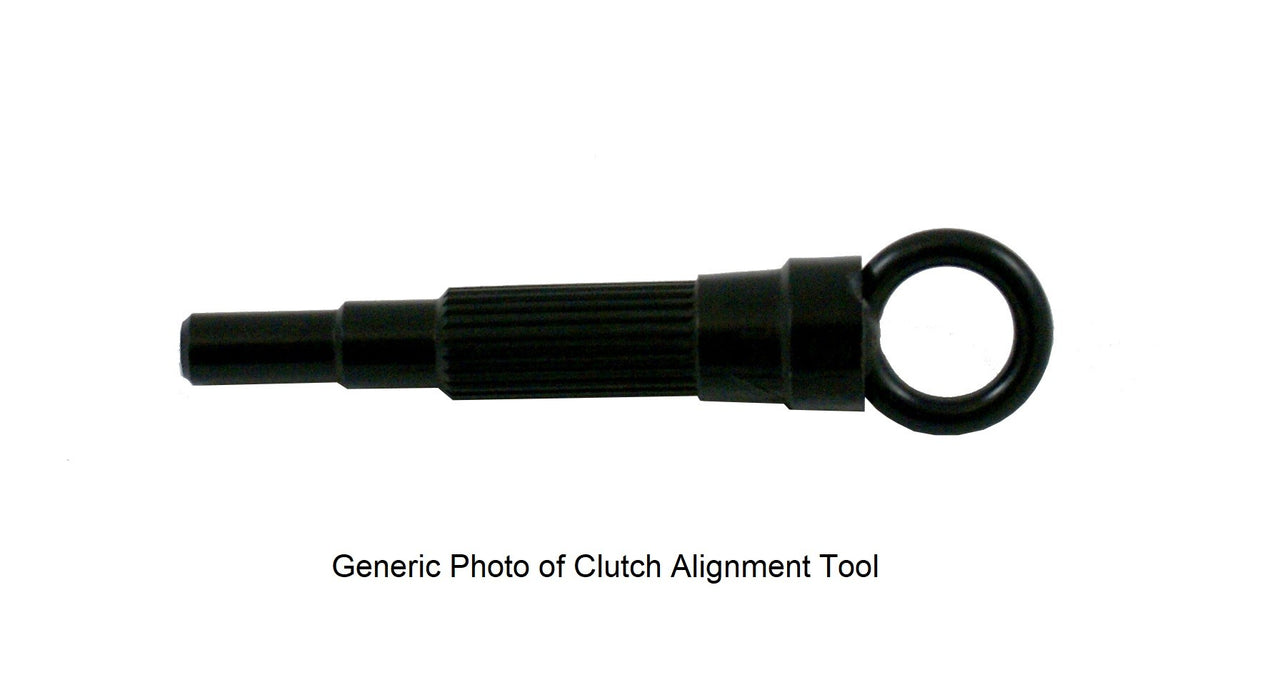

Clutch Alignment Tool - CAT106
Stock Status / Availability
While we carry many parts, some are shipped directly from suppliers. This gives access to thousands of products nationwide, but availability changes quickly — please check before ordering.
Features & Benefits
Using a clutch alignment tool ensures proper alignment, preventing errors during installation and ensuring a smooth, secure clutch engagement. |
Installing a new clutch can be a frustrating task, especially when dealing with the weight of a transmission beneath your car. The last thing you want is to redo the work because the clutch plate slipped out of alignment and wonât engage with the input shaft. To avoid this, use a clutch alignment tool. These simple tools, usually made of injection-molded plastic or nylon, are designed to ensure proper alignment and come in different sizes to match your transmission. The key is knowing the spline count on the input shaftâif the splines donât align, the tool wonât work. Never try to use a tool that doesnât fully engage the splines. If the tool doesnât fit the pilot bearing or bushing correctly, itâs the wrong size, and youâll need to find the right one. To use the tool, insert it into the clutch plate, making sure the clutch is facing the right direction and the tool passes through the splines. Place the clutch onto the flywheel and engage the alignment tool into the pilot bearing or bushing at the center of the crankshaft. Tighten the clutch against the flywheel, ensuring the tool stays securely in place. After installing the pressure plate, check that the tool remains properly seated. Once everything is tightened to spec, the alignment tool stays in the clutch until youâre ready to install the transmission. Always use the correct tool for your specific setup, as each application requires a different one. |
1969-1970, HT, Panel Van Wagon Van, 3.0, RWD, Petrol, 3L, 6Cyl, GMH 186 (Red), 108kW
• Transmission Code Opel 4 Speed
• Product Fitment Note: Suits Opel 4 Speed
Holden H Series
1969-1970, HT, Sedan, 3.0, RWD, Petrol, 3L, 6Cyl, GMH 186 (Red), 108kW
• Transmission Code Opel 4 Speed
• Product Fitment Note: Suits Opel 4 Speed
Holden H Series
1969-1970, HT, Sedan, 3.0, RWD, Petrol, 3L, 6Cyl, GMH 186 (Red), 97kW
• Transmission Code Opel 4 Speed
• Product Fitment Note: Suits Opel 4 Speed
Holden H Series
1969-1970, HT, Ute, 3.0, RWD, Petrol, 3L, 6Cyl, GMH 186 (Red), 97kW
• Transmission Code Opel 4 Speed
• Product Fitment Note: Suits Opel 4 Speed
Holden Torana
1972-1974, LJ, Sedan, 2.6, RWD, Petrol, 2.6L, 6Cyl, GMH 161 (Red), 88kW
Saab 900
1993-1994, Coupe, 2.0 i, FWD, Petrol, 2L, 4Cyl, B206I, 98kW
Saab 900
1993-1998, Convertible, 2.3 -16 S, FWD, Petrol, 2.3L, 4Cyl, B234I, 110kW
Saab 900
1993-1998, Coupe, 2.0 Turbo-16, FWD, Petrol, 2L, 4Cyl, B204L, 136kW
Saab 900
1993-1998, Coupe, 2.3 -16 S, FWD, Petrol, 2.3L, 4Cyl, B234I, 110kW
Saab 900
1993-1998, Hatchback, 2.3 -16 S, FWD, Petrol, 2.3L, 4Cyl, B234I, 110kW
Saab 9000
1990-1998, Sedan, 2.3 -16 CD Turbo, FWD, Petrol, 2.3L, 4Cyl, B234L, 147kW
Saab 9000
1993-1998, Hatchback, 2.3 -16 CSE Eco Power, FWD, Petrol, 2.3L, 4Cyl, B234E, 125kW
Saab 9-3
1998-2002, YS3D, Hatchback, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B204E, 113kW
Saab 9-3
1998-2002, YS3D, Hatchback, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B205E, B204L, B205L, 136kW
Saab 9-3
1998-2003, YS3D, Cabriolet Convertible, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B204E, 113kW
Saab 9-3
1998-2003, YS3D, Cabriolet Convertible, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B205E, B204L, B205L, 136kW
Saab 9-3
1999-2001, YS3D, Cabriolet Convertible, 2.0 SE Turbo, FWD, Petrol, 2L, 4Cyl, B204R, 147kW
Saab 9-3
1999-2001, YS3D, Hatchback, 2.0 SE Turbo, FWD, Petrol, 2L, 4Cyl, B204R, 147kW
Saab 9-3
1999-2002, YS3D, Hatchback, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B205E, 110kW
Saab 9-3
2001-2002, YS3D, Hatchback, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B205R, 151kW
Saab 9-3
2001-2003, YS3D, Cabriolet Convertible, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B205E, 110kW
Saab 9-3
2001-2003, YS3D, Cabriolet Convertible, 2.0 Turbo, FWD, Petrol, 2L, 4Cyl, B205R, 151kW
Saab 9-5
1999-2003, YS3E, Sedan, 2.3 t, FWD, Petrol, 2.3L, 4Cyl, B235E, 125kW
Saab 9-5
1999-2009, YS3E, Sedan, 2.0 t, FWD, Petrol, 2L, 4Cyl, B205E, 110kW
Saab 9-5
1999-2009, YS3E, Wagon, 2.0 t, FWD, Petrol, 2L, 4Cyl, B205E, 110kW
Saab 9-5
1999-2009, YS3E, Wagon, 2.3 t, FWD, Petrol, 2.3L, 4Cyl, B235E, 125kW
Saab 9-5
2001-2009, YS3E, Sedan, 2.3 t, FWD, Petrol, 2.3L, 4Cyl, B235E, 136kW
Saab 9-5
2001-2009, YS3E, Wagon, 2.3 t, FWD, Petrol, 2.3L, 4Cyl, B235E, 136kW
Saab 9-5
2003-2009, YS3E, Sedan, 2.3 Turbo, FWD, Petrol, 2.3L, 4Cyl, B235L, 162kW
