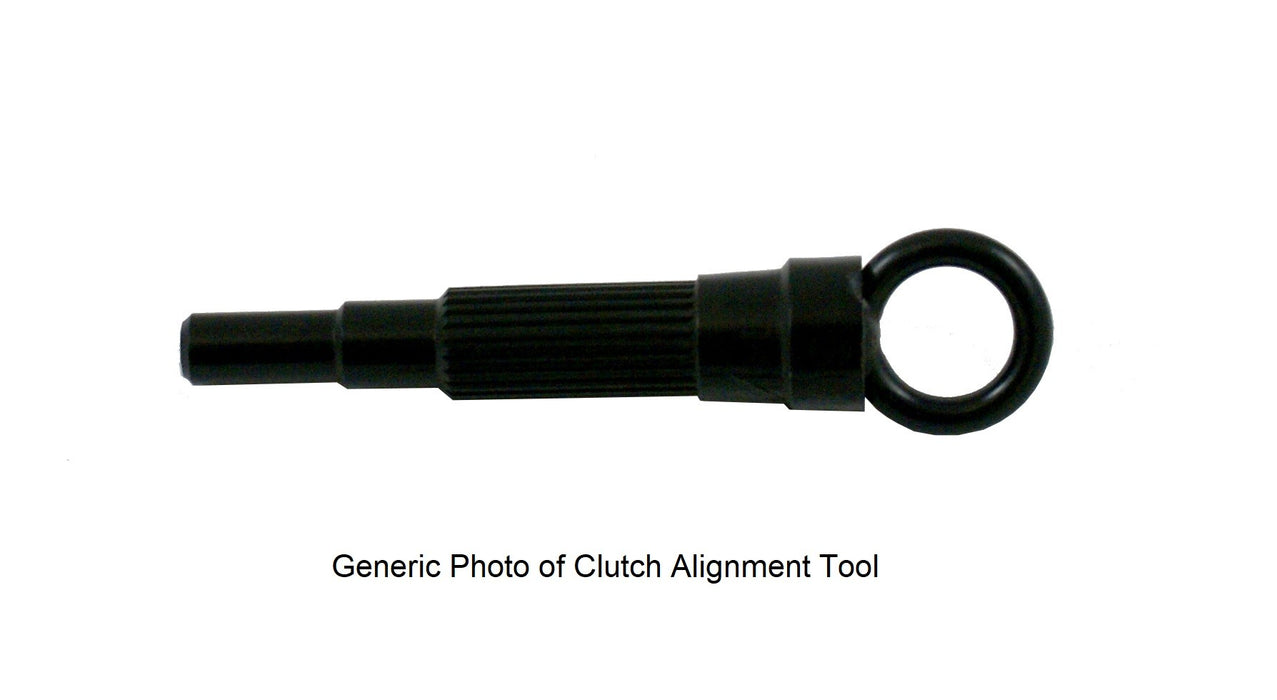

Clutch Alignment Tool - CAT150
Stock Status / Availability
While we carry many parts, some are shipped directly from suppliers. This gives access to thousands of products nationwide, but availability changes quickly — please check before ordering.
Features & Benefits
Using a clutch alignment tool ensures proper alignment, preventing errors during installation and ensuring a smooth, secure clutch engagement. |
Installing a new clutch can be a frustrating task, especially when dealing with the weight of a transmission beneath your car. The last thing you want is to redo the work because the clutch plate slipped out of alignment and wonât engage with the input shaft. To avoid this, use a clutch alignment tool. These simple tools, usually made of injection-molded plastic or nylon, are designed to ensure proper alignment and come in different sizes to match your transmission. The key is knowing the spline count on the input shaftâif the splines donât align, the tool wonât work. Never try to use a tool that doesnât fully engage the splines. If the tool doesnât fit the pilot bearing or bushing correctly, itâs the wrong size, and youâll need to find the right one. To use the tool, insert it into the clutch plate, making sure the clutch is facing the right direction and the tool passes through the splines. Place the clutch onto the flywheel and engage the alignment tool into the pilot bearing or bushing at the center of the crankshaft. Tighten the clutch against the flywheel, ensuring the tool stays securely in place. After installing the pressure plate, check that the tool remains properly seated. Once everything is tightened to spec, the alignment tool stays in the clutch until youâre ready to install the transmission. Always use the correct tool for your specific setup, as each application requires a different one. |
1988-2001, XJ, Closed Off-Road Vehicle, 4.0 i, AWD, Petrol, 4L, 6Cyl, ERH, 136kW
Jeep Cherokee
1995-2001, XJ, Closed Off-Road Vehicle, 4.0 i 4x4, AWD, Petrol, 4L, 6Cyl, ERH, 131kW
Jeep Cherokee
1996-2001, XJ, Closed Off-Road Vehicle, 2.5 Tdi 4x4, AWD, Diesel, 2.5L, 4Cyl, ENC, 85kW
Jeep Cj5 - Cj8
1972-1987, Open Off-Road Vehicle, 4.2, AWD, Petrol, 4.2L, 6Cyl, 232S, 76kW
Jeep Wrangler
1991-1996, YJ, SJ_, Open Off-Road Vehicle, 4.0, AWD, Petrol, 4L, 6Cyl, ERH, 131kW
Jeep Wrangler
1996-2007, TJ, Open Off-Road Vehicle, 4.0, AWD, Petrol, 4L, 6Cyl, ERH, 130kW
Jeep Wrangler
1996-2007, TJ, Open Off-Road Vehicle, 4.0, AWD, Petrol, 4L, 6Cyl, S01, 130kW
Jeep Wrangler
1998-2007, TJ, Open Off-Road Vehicle, 4.0, AWD, Petrol, 4L, 6Cyl, ERH, 124kW
Jeep Wrangler
2003-2007, TJ, Open Off-Road Vehicle, 4.0 Rubicon, AWD, Petrol, 4L, 6Cyl, ERH, 128kW
Jeep Wrangler
2007-2012, JK, Open Off-Road Vehicle, 3.8, AWD, Petrol, 3.8L, 6Cyl, EGT, 146kW
Land Rover 110/127
1983-1990, LDH, Closed Off-Road Vehicle, 3.5 4x4, AWD, Petrol, 3.5L, 8Cyl, 15G, 98kW
Land Rover 88/109
1963-1971, Closed Off-Road Vehicle, 2.3 4x4, AWD, Petrol, 2.3L, 4Cyl, 11H, 23 B, 10 H, 51kW
Land Rover 88/109
1963-1971, Soft top, 2.3 4x4, AWD, Petrol, 2.3L, 4Cyl, 11H, 23 B, 10 H, 51kW
Land Rover 88/109
1966-1971, Soft top, 2.6 4x4, AWD, Petrol, 2.6L, 6Cyl, 61kW
Land Rover Discovery
1989-1994, LJ, Closed Off-Road Vehicle, 3.5 4x4 (SALLJG), AWD, Petrol, 3.5L, 8Cyl, 22 D, 113kW
Land Rover Discovery
1989-1994, LJ, Closed Off-Road Vehicle, 3.5 4x4, AWD, Petrol, 3.5L, 8Cyl, 22 D, 122kW
Land Rover Discovery
1993-1998, LJ, Closed Off-Road Vehicle, 4.0 4x4, AWD, Petrol, 4L, 8Cyl, 36 D, 35 D, 134kW
Land Rover Range Rover
1969-1991, Closed Off-Road Vehicle, 3.5 4x4, AWD, Petrol, 3.5L, 8Cyl, 11 D, 96kW
Land Rover Range Rover
1970-1981, Closed Off-Road Vehicle, 3.5 4x4, AWD, Petrol, 3.5L, 8Cyl, 11 D, 97kW
Land Rover Range Rover
1981-1990, Closed Off-Road Vehicle, 3.5 Vogue 4x4, AWD, Petrol, 3.5L, 8Cyl, 11 D, 93kW
Land Rover Range Rover
1985-1990, Closed Off-Road Vehicle, 3.5 Vogue 4x4, AWD, Petrol, 3.5L, 8Cyl, 24 D, 25 D, 120kW
Land Rover Range Rover
1987-1990, Closed Off-Road Vehicle, 3.5 4x4, AWD, Petrol, 3.5L, 8Cyl, 31 D, 107kW
Land Rover Range Rover
1988-1992, Closed Off-Road Vehicle, 3.9 4x4, AWD, Petrol, 3.9L, 8Cyl, 35 D, 134kW
Land Rover Range Rover
1988-1994, Closed Off-Road Vehicle, 3.9 Cat 4x4, AWD, Petrol, 3.9L, 8Cyl, 37 D, 38 D, 127kW
Land Rover Range Rover
1988-1994, Closed Off-Road Vehicle, 3.9 Vogue SEI 4x4, AWD, Petrol, 3.9L, 8Cyl, 36 D, 35 D, 134kW
Suzuki Swift
1989-2001, EA, MA, Hatchback, 1.0 (SF310, AA44), FWD, Petrol, 1L, 3Cyl, G10, G10A, 37kW
