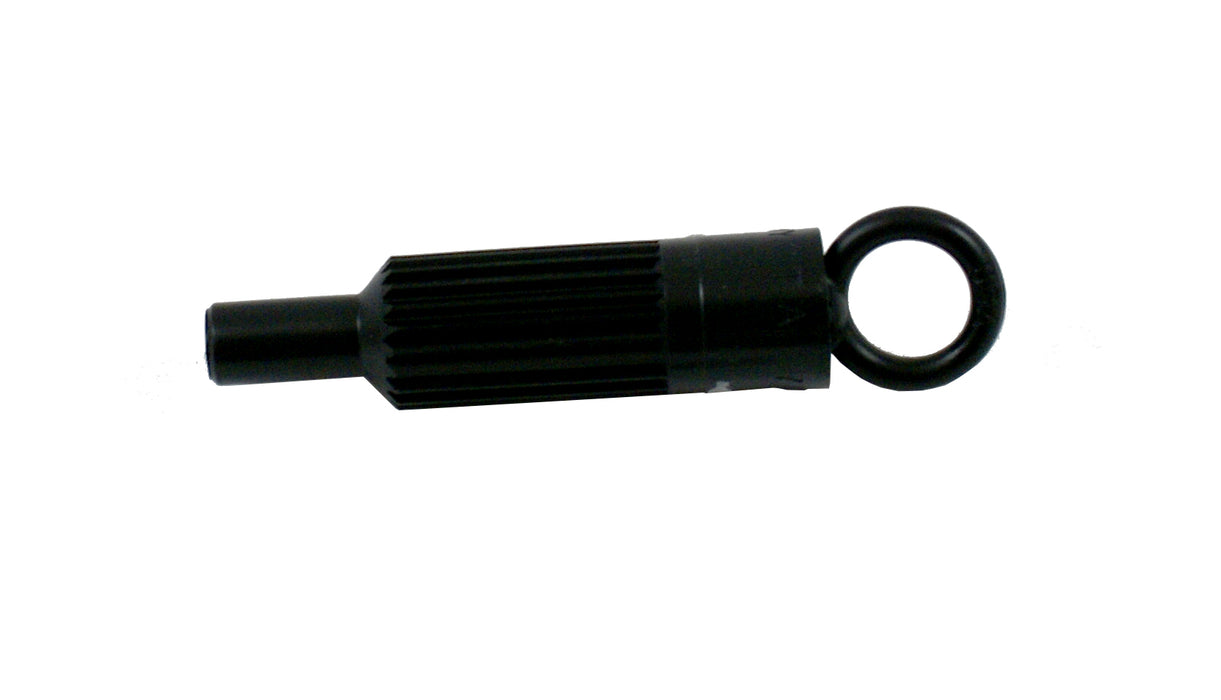

Clutch Alignment Tool - CAT199
Stock Status / Availability
While we carry many parts, some are shipped directly from suppliers. This gives access to thousands of products nationwide, but availability changes quickly — please check before ordering.
Features & Benefits
Using a clutch alignment tool ensures proper alignment, preventing errors during installation and ensuring a smooth, secure clutch engagement. |
Installing a new clutch can be a frustrating task, especially when dealing with the weight of a transmission beneath your car. The last thing you want is to redo the work because the clutch plate slipped out of alignment and wonât engage with the input shaft. To avoid this, use a clutch alignment tool. These simple tools, usually made of injection-molded plastic or nylon, are designed to ensure proper alignment and come in different sizes to match your transmission. The key is knowing the spline count on the input shaftâif the splines donât align, the tool wonât work. Never try to use a tool that doesnât fully engage the splines. If the tool doesnât fit the pilot bearing or bushing correctly, itâs the wrong size, and youâll need to find the right one. To use the tool, insert it into the clutch plate, making sure the clutch is facing the right direction and the tool passes through the splines. Place the clutch onto the flywheel and engage the alignment tool into the pilot bearing or bushing at the center of the crankshaft. Tighten the clutch against the flywheel, ensuring the tool stays securely in place. After installing the pressure plate, check that the tool remains properly seated. Once everything is tightened to spec, the alignment tool stays in the clutch until youâre ready to install the transmission. Always use the correct tool for your specific setup, as each application requires a different one. |
1998-2003, FT, HT, Closed Off-Road Vehicle, 2.5 V6 24V 4x4 (TD62, SQ625), AWD, Petrol, 2.5L, 6Cyl, H 25 A, 106kW
Suzuki Grand Vitara
2001-2003, FT, HT, Closed Off-Road Vehicle, 2.5 V6 24V 4x4 (SQ625), AWD, Petrol, 2.5L, 6Cyl, H 25 A, 116kW
Suzuki Grand Vitara
2003-2003, FT, HT, Closed Off-Road Vehicle, 2.7 4x4 (TX92, JA627), AWD, Petrol, 2.7L, 6Cyl, H 27 A, 135kW
Suzuki Grand Vitara
2007-2008, JT, TE, TD, Wagon Hardtop, 2.7 All-wheel Drive (JB627, TD94V), AWD, Petrol, 2.7L, 6Cyl, H 27 A, 136kW
Suzuki Grand Vitara
2008-2018, JT, TE, TD, Wagon Hardtop, 2.4 (JB424), RWD, Petrol, 2.4L, 4Cyl, J24B, 122kW
Suzuki Grand Vitara
2009-2018, JT, TE, TD, Wagon Hardtop, 2.4 (JT424, JB424, TDA4), AWD, Petrol, 2.4L, 4Cyl, J24B, 122kW
Toyota Blizzard
1982-1984, LD1_, Closed Off-Road Vehicle, 2.2 D (LD10), AWD, Diesel, 2.2L, 4Cyl, L, 46kW
Toyota Celica
1982-1985, _A6_, Coupe, 2.0 (RA63_, RA63R), RWD, Petrol, 2L, 4Cyl, 18R-G, 88kW
Toyota Celica
1982-1985, _A6_, Liftback Hatchback, 2.0 XT (RA61), RWD, Petrol, 2L, 4Cyl, 21R-C, 77kW
Toyota Coaster
1987-1993, _B2_, _B3_, Bus, 4.2 D (HZB30_, HZB36_, HZB31_, HZB30R, HZB31R, HZB36R), RWD, Diesel, 4.2L, 6Cyl, 1H-Z, 92kW
Toyota Coaster
1990-1993, _B2_, _B3_, Bus, 4.2 TD (HDB20, HDB30, HDB31), AWD, Diesel, 4.2L, 6Cyl, 1HD-T, 118kW
Toyota Coaster
1993-2008, _B4_, _B5_, Bus, 4.2 D (HZB50, HZB56V, HZB46V), RWD, Diesel, 4.2L, 6Cyl, 1H-Z, 96kW
Toyota Corona
1979-1983, XT, Wagon, 1.9 (XT130), RWD, Petrol, 1.9L, 4Cyl, 1X, 58kW
Toyota Corona
1979-1983, _T1_, Sedan, 1.9 (XT130), RWD, Petrol, 1.9L, 4Cyl, 1X, 58kW
Toyota Cressida
1977-1981, _X3_, Sedan, 2.0 (RX30), RWD, Petrol, 2L, 4Cyl, 18R, 66kW
Toyota Cressida
1981-1985, _X6_, Station Wagon, 2.0 (RX60_, RX60), RWD, Petrol, 2L, 4Cyl, 21R, 77kW
Toyota Cressida
1982-1985, _X6_, MX62, Sedan, 2.0 GLI (GX61_, GX61), RWD, Petrol, 2L, 6Cyl, 1G-E, 80kW
Toyota Hiace
1982-1989, _H5_, _H6_, _H7_, _H8_, _H9_, Bus, 2.2 D (LH50, LH60), RWD, Diesel, 2.2L, 4Cyl, L, 49kW
Toyota Land Cruiser
1974-1980, _J4_, _J5_, Closed Off-Road Vehicle, 3.0 D 4WD (BJ42, BJ40RV), AWD, Diesel, 3L, 4Cyl, B, 59kW
Toyota Land Cruiser
1990-1997, _J8_, Closed Off-Road Vehicle, 4.2 D (HZJ80), AWD, Diesel, 4.2L, 6Cyl, 1H-Z, 94kW
Toyota Land Cruiser
1990-1997, _J8_, Closed Off-Road Vehicle, 4.2 D (HZJ80, HZJ81), AWD, Diesel, 4.2L, 6Cyl, 1H-Z, 99kW
Toyota Land Cruiser
1990-2007, _J7_, _JL7_, Closed Off-Road Vehicle, 4.2 D (HZJ73, HZJ70RV, HZJ75RV, HZJ78R), AWD, Diesel, 4.2L, 6Cyl, 1H-Z, 96kW
Toyota Land Cruiser
1990-2007, _J7_, _JL7_, Pick-up Platform/Chassis, 4.2 D 4x4 (HZJ75RP, HZJ79R), AWD, Diesel, 4.2L, 6Cyl, 1H-Z, 96kW
Toyota Land Cruiser
1999-2004, _J7_, Closed Off-Road Vehicle, -, AWD, Diesel, 6Cyl, 1HZ
